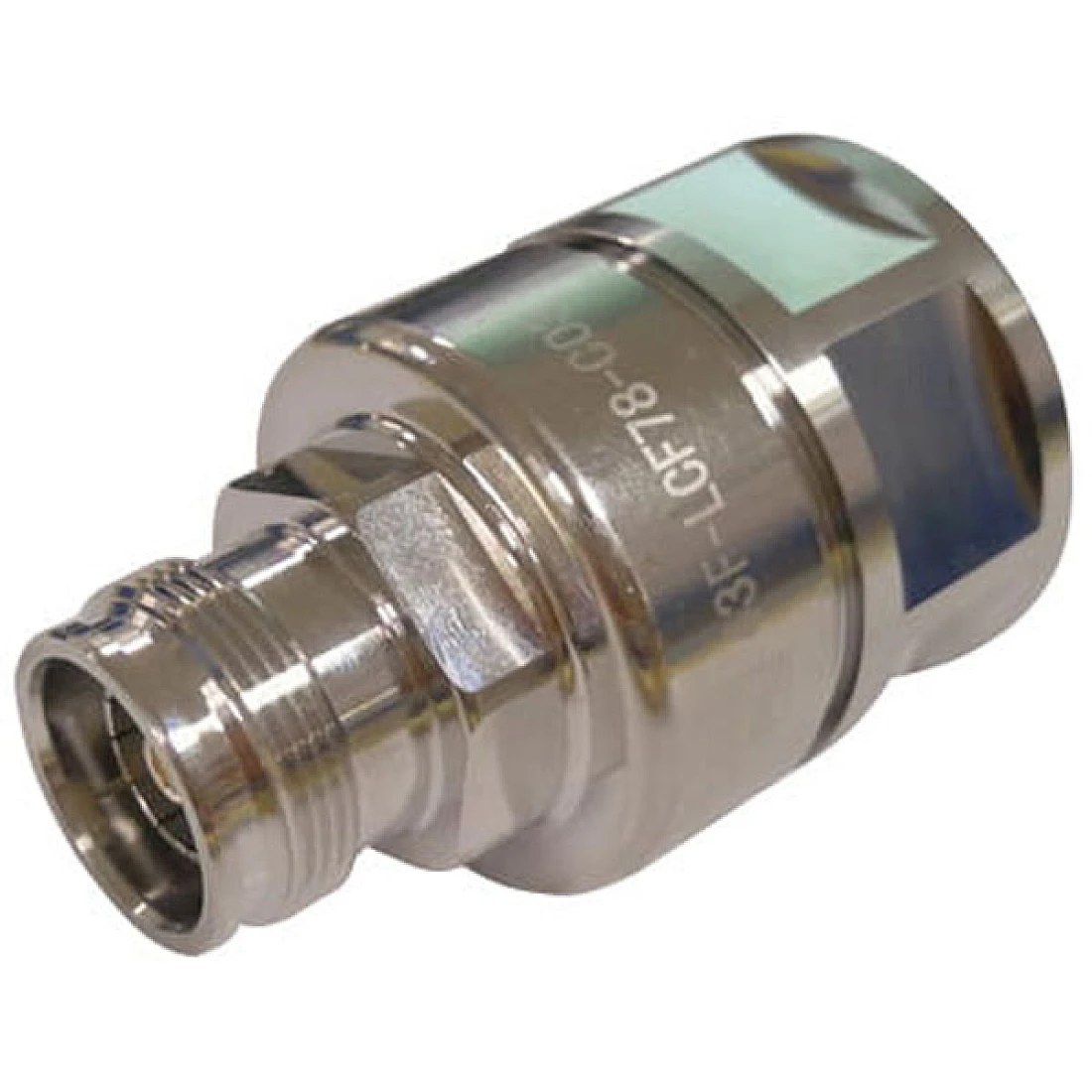

43F-LCF78-D01 4.3-10 Female Straight Connector for 7/8" Coaxial Cable, OMNI FIT Premium, Polymer claw and compression sealing

43F-LCF78-D01 4.3-10 Female Straight Connector for 7/8" Coaxial Cable, OMNI FIT?Premium, Polymer claw and compression sealingDOWNLOAD DATA SHEETTechnical FeaturesGENERAL SPECIFICATIONSTransmission Line Type Coaxial CableCable Size 7/8"Cable Type Foam DielectricModel Series LCF78-50 Series, RCF78-50 SeriesConnector Interface 4.3-10Connector Type OMNI FIT?Premium, StraightSealing Method Polymer claw + 360° CompressionGender FemaleELECTRICAL SPECIFICATIONSNominal Impedance Ohm 503rd Order IM Product @ 2x20 Watts dBc -163 ; typical -167Maximum Frequency GHz 5.0VSWR, Return Loss VSWR (dB) 0 < f 1.0 GHz: 1.02 (40.1)1.0 < f 2.7 GHz: 1.03 (36.6)2.7 < f 3.7 GHz: 1.06 (30.7)3.7 < f 5.0 GHz: 1.09 (27.3)MECHANICAL SPECIFICATIONSPlating Outer/Inner NiTin/SilverLength mm (in) 68.2 (2.69)Outer Diameter mm (in) 40 (1.57)Weight kg (lb) 0.17 (0.37)Inner Contact Attachment BasketOuter Contact Attachment 360° clampingACCESSORIESWrench size front mm (in) 36 (1-7/16)Wrench size rear mm (in) 36 (1-7/16)Trimming Tool TRIM-SET-L78-D01, TRIM-LCF78-D01-ATESTING AND ENVIRONMENTALWaterproof Level IP68

For more information on 43F-LCF78-D01 4.3-10 Female Straight Connector for 7/8" Coaxial Cable, OMNI FIT Premium, Polymer claw and compression sealing talk to Connectors Cables Specialists (CCS) Ltd
