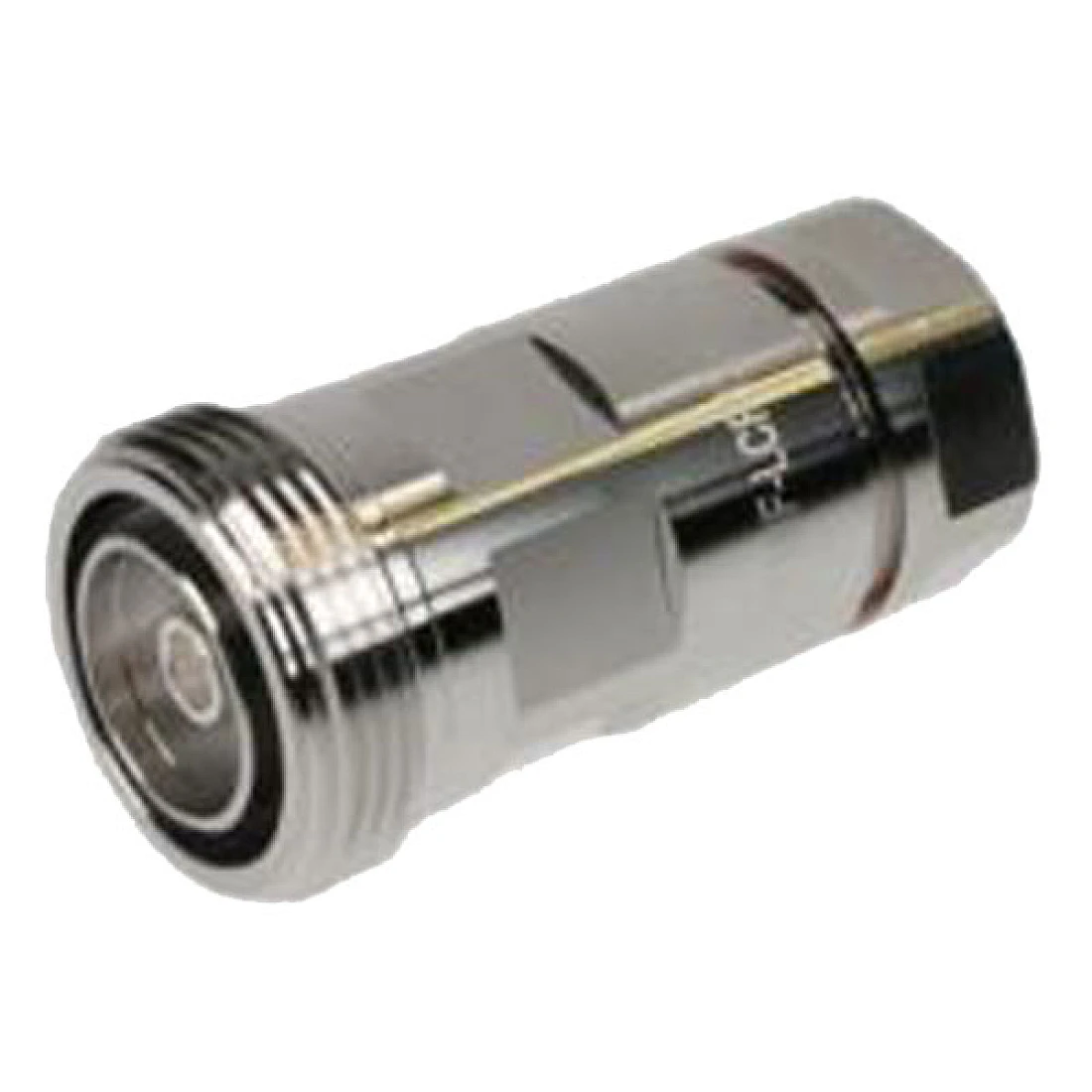

716F-SCF12-C03 7-16 Female Connector for 1/2" Coaxial SuperFlexibleCable, OMNI FIT standard

7-16 Female Connector for 1/2" Coaxial SuperFlexible Cable, OMNI FIT?standardDOWNLOAD DATA SHEETTechnical FeaturesGENERAL SPECIFICATIONSTransmission Line Type Coaxial CableCable Size 1/2"Cable Type Foam Dielectric|SuperflexibleModel Series SCF12-50 SeriesConnector Interface 7-16 DINConnector Type OMNI FIT?StandardSealing Method O-ringGender FemaleELECTRICAL SPECIFICATIONSNominal Impedance Ohm 503rd Order IM Product @ 2x20 Watts dBc -159 typicalMaximum Frequency GHz 3.7VSWR, Return Loss VSWR (dB) 0 < f 1.0 GHz: 1.03 (36.6)1.0 < f 2.7 GHz: 1.04 (34.1)2.7 < f 3.7 GHz: 1.08 (28.3)MECHANICAL SPECIFICATIONSPlating Outer/Inner Trimetal/SilverLength mm (in) 46.9 (1.85)Outer Diameter mm (in) 29 (1.14)Weight kg (lb) 0.08 (0.18)Inner Contact Attachment BasketOuter Contact Attachment Rigidity impactionACCESSORIESWrench size front mm (in) 18 (7/10)Wrench size rear mm (in) 18 (7/10)TESTING AND ENVIRONMENTALWaterproof Level IP68

For more information on 716F-SCF12-C03 7-16 Female Connector for 1/2" Coaxial SuperFlexibleCable, OMNI FIT standard talk to Connectors Cables Specialists (CCS) Ltd
