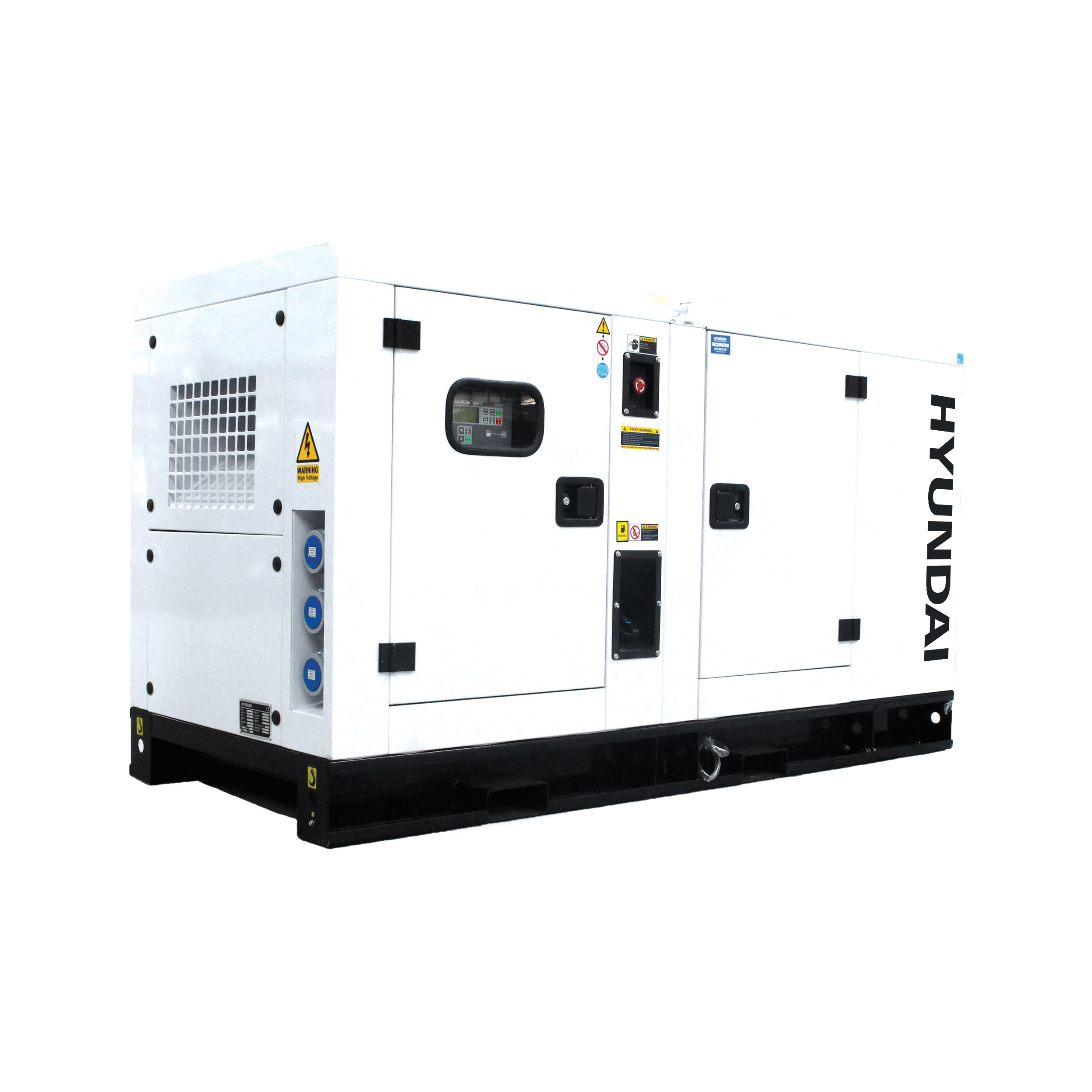

33kW Single-Phase Diesel Generator
The DHY35KSEm is a powerful single-phase diesel generator from Hyundai. Suitable for powering a very large home or office, or a number of site cabins on a construction site, this diesel genset has a maximum output of 45KVA.
Powerful Hyundai Engine
Powered by an 35hp HY4105 diesel engine, the DHY35KSEm is able to produce a maximum output of 45KVA / 33kW.
Fitted with AVR Alternator
Equipped with an AVR alternator to produce clean energy, the DHY35KSEm is suitable for powering sensitive electronic equipment, such as televisions, PCs and laptops, in your home or business.
ATS Compatible
The DHY35KSEm can be started manually by using the key, or connected to an ATS (Automatic Transfer Switch) system, which will automatically turn on the generator when a loss of power to the property is detected. When power returns from the mains, the ATS module will then safely turn your generator off.
This is ideal for those who need to guarantee constant power - for example, if you run servers or have refrigeration units.
Silenced Generator
Housed in a weather-proof 'silenced' canopy, the DHY35KSEm produces only 65dB @ 7 metres which makes it a quiet standby generator that won't interrupt you at home or work.
Corrosion-Proof Canopy
All Hyundai 1500rpm diesel generators' soundproofed canopies undergo an anti-corrosion painting process called electrophoretic painting. This process ensures all areas of the canopy have an evenly applied thickness of paint, ensuring maximum corrosion protection.
Digital Control Panel
Fitted with an MRS 10 control panel interface as standard, this gives instant visibility for oil level & pressure, water temperature, battery charge levels and low running on engine, making maintenance easier than ever before.
1500rpm Generator
1500rpm diesel generators are ideal for static installation for daily prime power, as well as for regular standby generator/backup generator use.
1500rpm generators have slower running, water-cooled engines which are less stressed than 3000rpm generators, which make them the best option if you're going to use your generator as your main power source and will also prolong its lifespan.
Economical Generator
Diesel generators are ideal for backup applications as sometimes petrol can go stale and prevent a generator working. Our diesel generators also run happily on budget-friendly red diesel, without voiding the warranty and making it cost-effective to refuel.
Delivery
Kerbside delivery is included in the price. However, please note that a forklift will be required for unloading.
2 Year Warranty
This 27.5kVA diesel generator comes with a 2 year Hyundai warranty with full UK parts and service backup for added peace of mind.
Generator kVA Ratings
All of our single-phase generators have a kVA rating that is higher than the kW. This is because we have assumed the appliances you are going to power have a load factor/power factor of 0.8 - therefore the 'assumed' kVA rating of the load would be higher. This is industry standard and it is usually best to scope the right unit based on the kW.
Specifications
Battery (Ah) 1x12V-60Ah
Dimensions (L x W x H) (mm) 2200 x 950 x 1310
Engine Model HY4105
Frequency 50
Fuel Capacity (L) 93
Noise @ 1m 92
Noise @ 7m (dB) 65
Power Factor (Cos?) 0.8
Dimensions (mm): Length 2200 x Width 950 x Height 1310
Rated Power (kW/kVA): 32 / 40
Max Power (kW/kVA): 33 / 45
Frequency: 50
Voltage(s): 230, 400
Controller: MRS10 / Deepsea
ATS Port: INCLUDED
Battery (Ah): 1x12V-60Ah
Fuel Capacity (L): 93
Cooling Fluid Volume (L): 25
Fuel Consumption (l/h): 7.2 / 12.8
Engine Model: HY4105
Power Output (hp): 35
Rotate Speed: 1500 RPM
Speed Regulation: MECHANICAL
Displacement: 4100
Oil Capacity (L): 9
Alternator: AVR
Power Factor (Cos?): 0.8
Voltage Regulation: AVR
Low Oil Pressure: Yes
Block On Startup: Yes
Low Battery: Yes
High Temperature On Water: Yes
Low Oil Level: Yes
Low Running On Engine: Yes
Emergency Stop: Yes
N.G. (kg.): 990
Noise @ 1m: 92
Noise @ 7m: 65
Weight: 1050kg
Large Camping Equipment
Large Home
Light Industrial
Heavy Industrial
Hyundai Diesel Generator Manual
For more information on Hyundai 1500rpm 45kVA Single Phase Diesel Generator talk to Generator-Pro
