Specification

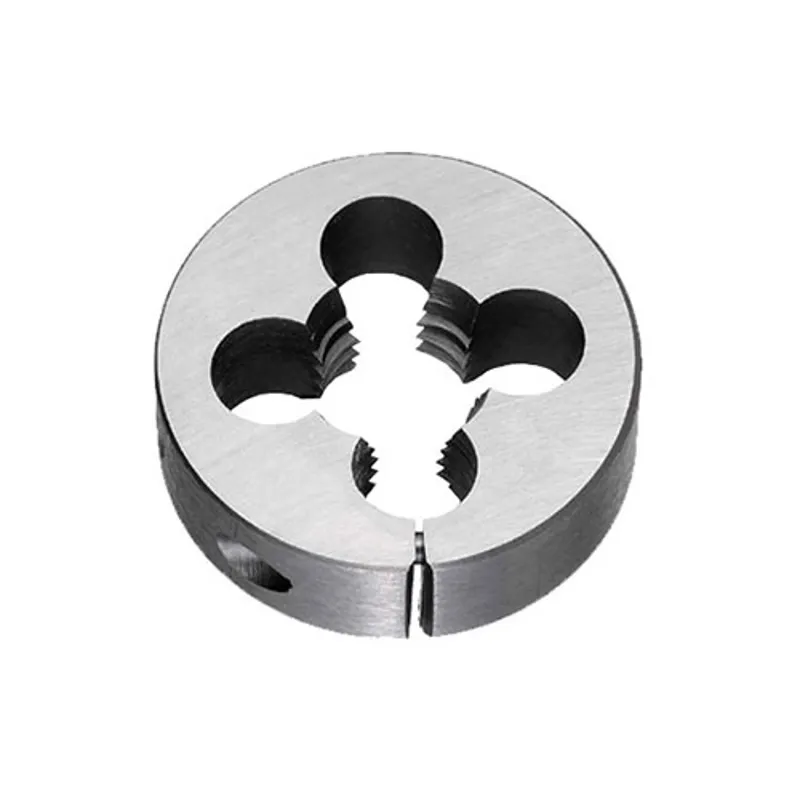

Product: 1/4" UNJF Circular Split Die Left Hand
Size: 1/4"x28 tpi UNJF
Tolerance: 3A
Material: High Speed Steel
Outside Diameter: 13/16"
UNJF. "J" threads are supplied in both external and internal forms. The external thread has a much larger root radius than the corresponding UNC, UNF or UNS threads. This radius is mandatory and its inspection is required, whereas no root radius is required on UNC, UNF, or UNEF threads. Since the larger root radius increases the minor diameter, a UNJF fastener has a larger net tensile area than a corresponding UNF fastener. This root radius also gives a smaller stress concentration factor in the threaded section. Therefore, high strength bolts usually have "J" threads.
Part Number ES-16135
For more information on 1/4x28 UNJF - 3A Left Hand HSS Circular Split Die 13/16 o/d talk to JLS Supplies Ltd
