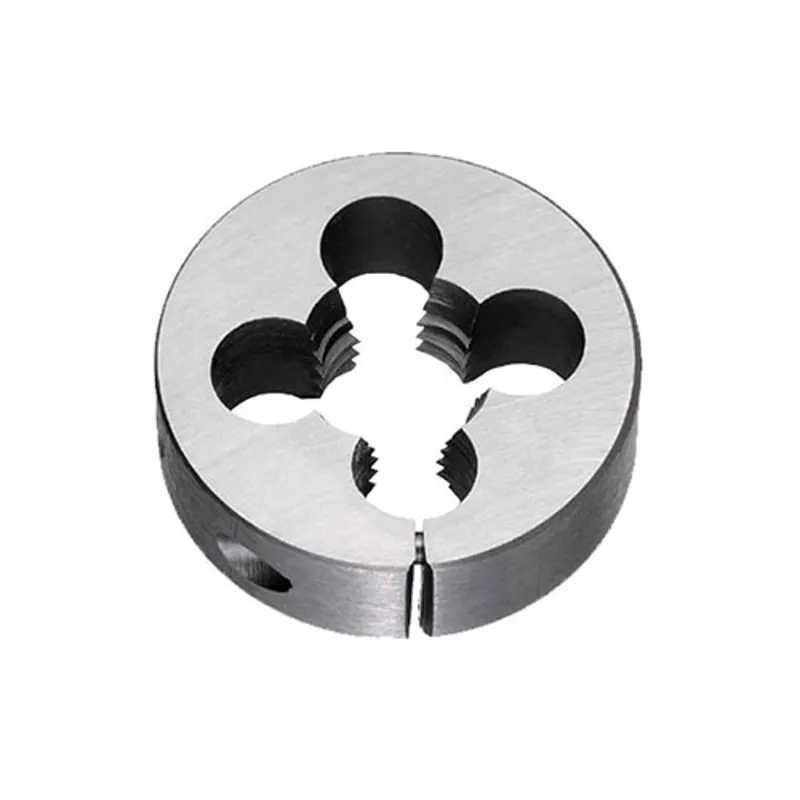

5/16 x 24 UNJF - 3A HSS Circular Split Die 1" o/d

Specification 5/16x24 HSS UNJF Thread Right Hand die 3A Tolerance UNJF threads. "J" threads are supplied in both external and internal forms. The external thread has a much larger root radius than the corresponding UNC, UNR, UNK, or UNF threads. This radius is mandatory and its inspection is required, whereas no root radius is required on UNC, UNF, or UNEF threads. Since the larger root radius increases the minor diameter, a UNJF fastener has a larger net tensile area than a corresponding UNF fastener. This root radius also gives a smaller stress concentration factor in the threaded section. Therefore, high-strength bolts usually have "J" threads. Part Number ES-16083

For more information on 5/16 x 24 UNJF - 3A HSS Circular Split Die 1" o/d talk to JLS Supplies Ltd
