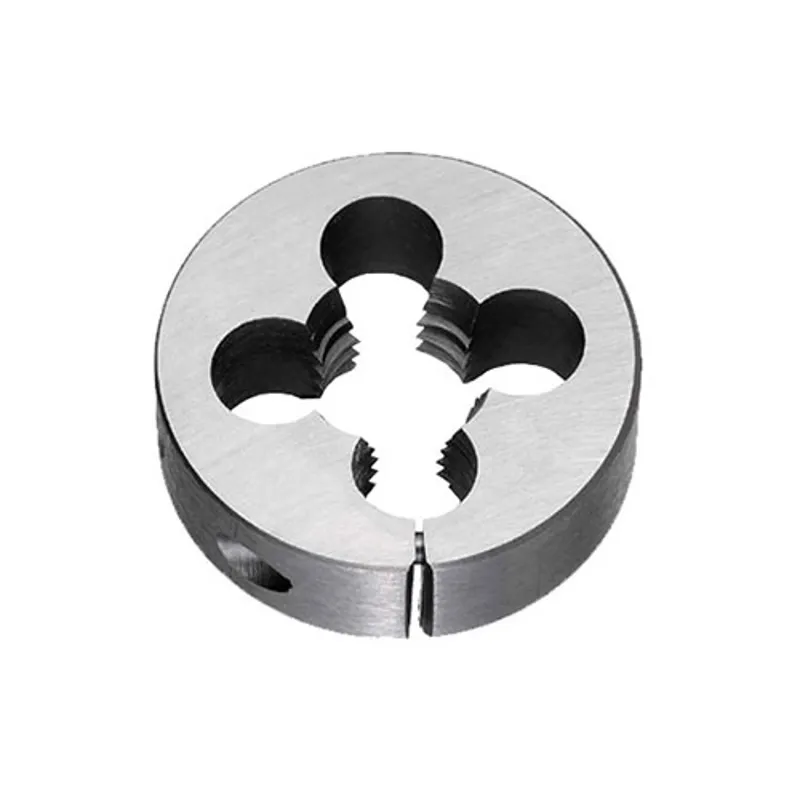

7/16x20 UNJF - 3A HSS Left Hand Circular Split Die 1" o/d

Specification Product: 7/16" UNJF Circular Split Die Left Hand Size: 7/16"x20 tpi UNJF Tolerance: 3A Material: High Speed Steel Outside Diameter: 1" UNJF. "J" threads are supplied in both external and internal forms. The external thread has a much larger root radius than the corresponding UNC, UNF or UNS threads. This radius is mandatory and its inspection is required, whereas no root radius is required on UNC, UNF, or UNEF threads. Since the larger root radius increases the minor diameter, a UNJF fastener has a larger net tensile area than a corresponding UNF fastener. This root radius also gives a smaller stress concentration factor in the threaded section. Therefore, high strength bolts usually have "J" threads. Part Number ES-16137

For more information on 7/16x20 UNJF - 3A HSS Left Hand Circular Split Die 1" o/d talk to JLS Supplies Ltd
